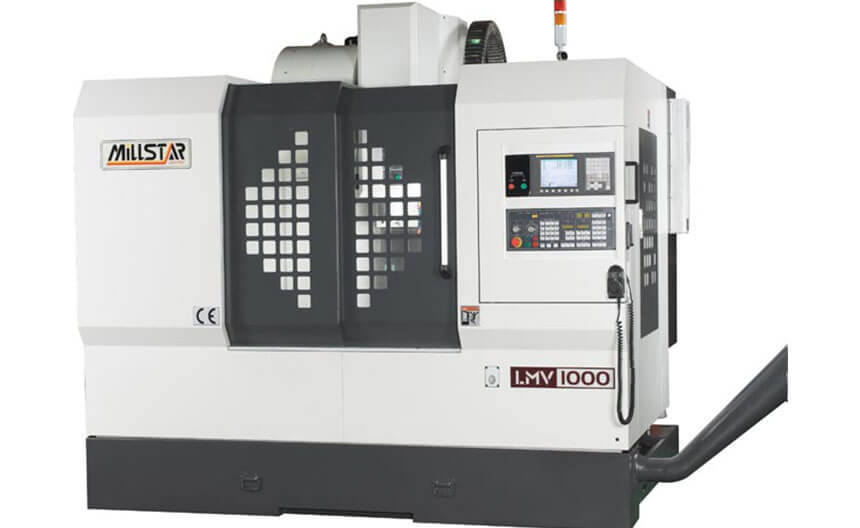

Vertical Machining Center LMV series: LMV1000

LMV1000

(BT40) X1000 / Y600 / Z620
  • Finite element analysis
  • The extra-wide and extremely stable base has 4 Linear ways providing solid support for the entire machine.
  • X, y axis with 4 and 6 blocks on Linear Guideway (850/1000). X, Y axis with 6 and 8 blocks on Linear Guideway (1200/1400).
  • High speed and precision ball screw.
  • High rigidity spindle.
  • Stability ATC system. (Auto tool change)
Model LMV1000
Table Work Table 1200 X 550 mm
T-slot 100 X 18 mm X 5T
Max. Loading 1000 kg
Travel Three Axes Travel 1000 X 600 X 620 mm
Spindle Nose to Table Surface 130~750 mm
Spindle Center to Column Slide Ways 620 mm
Spindle Spindle Taper BT40
Spindle Diameter Φ70 mm
Spindle Speed 8000 rpm
Feedrate 3 axes Slide Ways Linear Way
3 axes Rapid Feedrate 30/30/30 m/min
3 axes Cutting Feedrate 10/10/10 m/min
ATC Tool Magazine type Armless
Tool Selection Bi-direction shortest path
Max. Tool Diameter X Length Φ100 X 300 mm
Max. Tool Weight 7 kg
Tool Shank BT40
ATC Capacity 20T
Motor Spindle Motor(cont./30 min) 7.5/11 kw
X/Y/Z axis Servomotor HF204
X/Y/Z axis Ball Screw Φ40 X Pitch 10
Coolant Pump 660W
Miscellaneous External Dimensions(L X W X H) 2810 X 2238 X 2771 mm
N.W/G.W.(approx..) 6200/6900 kg
Splash Guard Fully Splash guard
Coolant Tank Capacity 250L

All specifications and designs are subject to change without prior notice.

Standard Accessories:

  1. Mitsubishi M80 controller
  2. 8.4” color LCD
  3. Leveling kits and blocks
  4. Tool box with tools
  5. Spindle speed 8000 rpm,BT-40(LMV-850~LMV-1400)
  6. Spindle speed 10000 rpm, LMV-510/710/800
  7. Spindle speed 4500 rpm,Belt drive, BT-50,LMV-1200/LMV-1400
  8. Spindle air blow system
  9. Coolant system
  10. Auto power off
  11. Heat exchanger
  12. Auto lubrication system
  13. 20 tools armless type ATC
  14. Rigid tapping
  15. Screw type chip conveyor with cart
  16. M code air blasting
  17. RS232 interface
  18. Fully splash cover
  19. Quartz working light
  20. Transformer(Export only)

Optional Accessories:

  1. Fanuc/Mitsubishi M800/Siemens/Heidenhain/Fagor
  2. 10.4” color LCD
  3. Spindle speed 10000/12000/15000 rpm(BT40),Direct Drive(DDS)
  4. Spindle speed 6000/8000 rpm(BT50)
  5. Spindle oil cooler(LMV510/710/800 std.)
  6. ZF gear box(BT40/BT50)
  7. Japan HAMADA Gear head(BT50),LMV-1200/LMV-1400
  8. 4th axis interface (not include motor & drive)
  9. CNC rotary table with drive,motor
  10. Coolant through spindle 20/30/50 BAR(CTS)
  11. Air conditioner for electric cabinet
  12. 24 tools arm type ATC (BT40/BT50)
  13. 32 tools chain type ATC (BT50)
  14. Steelbelt type/Scraper type chip conveyor with cart
  15. Chip flushing system
  16. CE norm
  17. Oil skimmer
  18. Automatic tool length measuring device
  19. Automatic work piece measuring device
