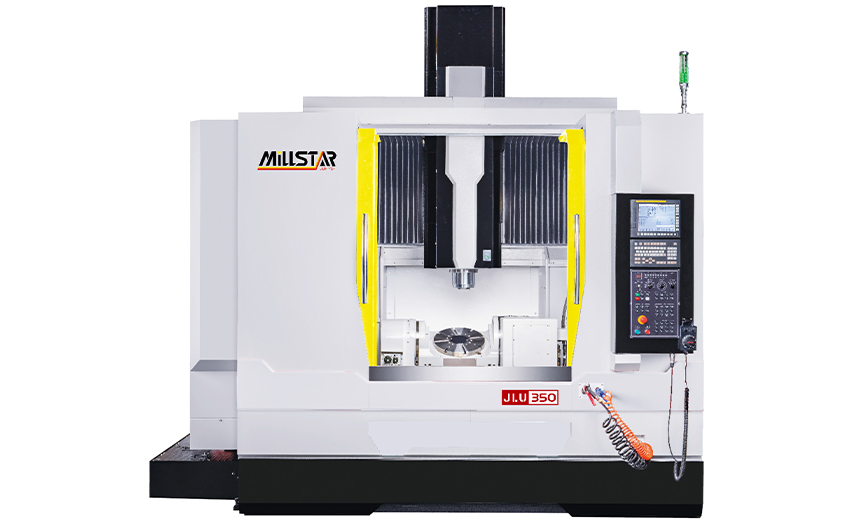

Five Axis Machining Center
JLU-350
OUTSTANDING FEATURES
- Compact construction with high stability.
- Heavy-duty roller type linear guide ways on X / Y / Z axes.
- Equipped with a high-precision tilting rotary table (A / C axis).
- 5 axis simultaneous machining allows for machining complex parts with high efficiency and high accuracy.
- 12,000 rpm direct drive spindle features low vibration, low noise, and low thermal growth.
- BT-40 spindle taper.
- Rapid traverse rates on X / Y / Z axes 36 m/min.
- Equipped with a 24-tool magazine.
Model | JLU-350 | |
---|---|---|
Travel | X axis Travel | 1020 mm |
Y axis Travel | 610 mm | |
Z axis Travel | 510 mm | |
Distance from Spindle Nose to Table | 100 ~610 mm | |
Table | Table Diameter | 350 mm |
Max. Table Load | 200 kg | |
T-slot Size (No×Size×Pitch) | 8×12×45° mm | |
Sindle | Spindle Speed | 12,000 rmp |
Drive Method | Direct Drive | |
Spindle Taper | #40 | |
A axis | TILTING AXIS [A axis] | |
Tilting Angle | -120°~+30° | |
Max. Speed | 40 rmp | |
Minimum Split Angle | 0.001° | |
C axis Rotary Table | C axis | |
C axis Rotating Angle | 360° | |
Max. Speed | 33.3 rmp | |
Minimum Split Angle | 0.001° | |
ATC | ||
TOOL MAGZING LOADING | ||
Tool Shank | #40 | |
Tool Magzine Loading Capacity | 24 pcs | |
Rapid Feed Rates (X/Y/Z) | 36/36/36 m/min | |
Cutting Feed Rate | 1~20,000 mm/min |
All specifications and designs are subject to change without prior notice.
Standard Accessories:
- Lubrication system
- Fully enclosed splashguard
- Manual roof splashguard
- Spindle / AC axis coolant system
- Chip cart
- Chip conveyor
- Air conditioner for electrical cabinet
- LED working lamp
- USB
- Ethernet
- Air gun
- Water gun
- Spindle ring spray, Spindle outside air spray 2 output
Optional Accessories:
- Linear scale
- Tool length measurement
- Workpiece measurement
- Oil mist collector
- Auto front door
- Auto roof splashguard
- CE certified
- Coolant through spindle (CTS)
- Spindle thermal displacement compensation
- Whole structure thermal displacement compensation
- Spindle ring spray
- Oil skimmer
- RS-232 interface
